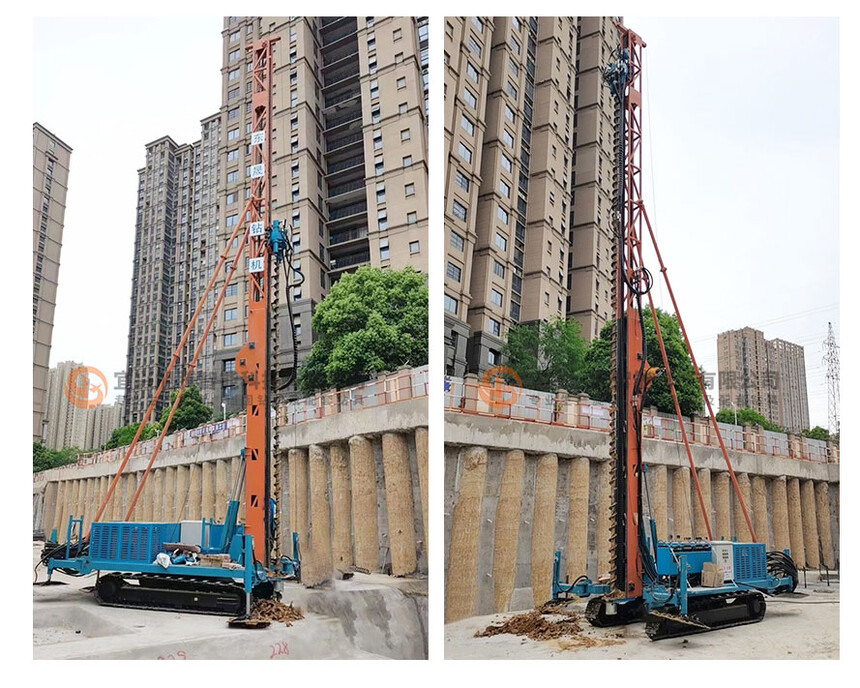

XDZ-165D Anti Floating Anchor Rod Drilling Machine

　　Product features and applications

　　The XDZ-165D anti floating anchor rod drilling rig is a multifunctional drilling rig developed by Yixing Xuteng Intelligent Technology Co., Ltd. according to market needs, suitable for high-pressure rotary spraying and anchoring engineering construction technology. It is widely used in industries such as railways, highways, construction, water conservancy, and power, mainly for foundation reinforcement, anti-seepage and water blocking, and maintenance of existing bearing piles.

　　Advantages: One shot saves time and labor.

　　The main features are as follows:

　　•The required homework space is small. When the construction height is 15.5 meters, the effective length of the drill pipe can reach 14 meters, and the overall height can be further increased according to customer needs. The maximum width of the integrated drilling rig is 4300mm. The length is 5000mm. 13 meters can be drilled all at once, and if it exceeds 13 meters, the rod can be extended for drilling.

　　•Suitable for a wide range of strata. Different performance configurations can be made according to different formations, and the maximum output torque can reach 7000N. m. The maximum lifting force can reach 65KN, and drilling methods such as hard alloy drill bit rotary drilling, DTH hammer impact rotary drilling, and tooth drill bit drilling can be selected for drilling. This allows for direct drilling with this drilling rig in most formations, and immediate rotary jetting and anchor rod pile formation.

　　•Suitable for a wide range of craftsmanship. In addition to meeting the requirements of rotary spraying technology, it can also be used for the construction of anchoring technology.

　　•There are many configuration components. Users can choose different performance modules according to the development needs of different projects, which can be purchased at once or configured according to the continuous development of the project. For single, double, and triple modules: swing spray and fixed spray modules; Anchor module.

　　•Easy to operate and maintain. Due to the use of full hydraulic technology, breakthroughs have been made in key technologies, such as the addition of stepless speed control modules during rotary jet lifting and anchoring drilling, making it more convenient to operate during operation.

　　•The drilling tools are fully equipped. According to market needs, we have developed large-scale rotary spray drilling tools to meet various user needs, such as single, double, triple, fixed spray, and swing spray drilling tools.

　　•Easy to combine. Users can choose different combinations based on their respective development situations to obtain devices with better performance to price ratios.

　　•For domestic users, we can configure a complete set of rotary spraying equipment according to their needs, and provide on-site practical operation training and demonstration of drilling.

　　Main technical parameters:
