XDZ-80A Tracked Low Frame Rotary Jet Drilling Rig

Collect
DETAILS


　　Product features and scope of application

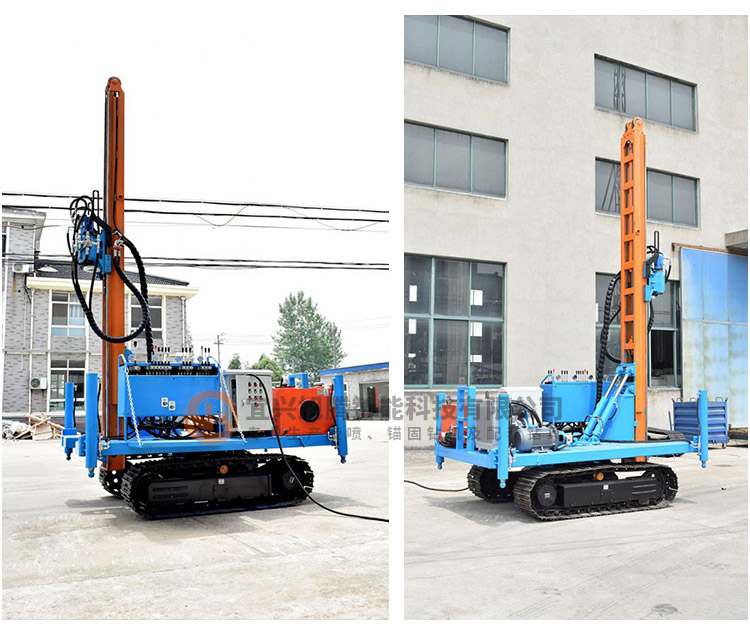

　　The XDZ-80A series low frame rotary jet drilling rig is a multifunctional drilling rig developed by Yixing Xuteng Intelligent Technology Co., Ltd. according to market needs, suitable for high-pressure rotary jet and anchoring engineering construction processes. It is widely used in industries such as railways, highways, construction, water conservancy, and power, mainly for foundation reinforcement, anti-seepage and water blocking, and maintenance of existing bearing piles.




　　The main features are as follows:

　　•The required homework space is small. When the construction height is 5.2 meters, the effective length of the drill pipe can reach 3 meters, and the overall height can be further compressed according to customer needs. The overall drilling rig has a width of 2000mm. The length is 3300mm and can be used for indoor work.

　　•Suitable for a wide range of strata. Different performance configurations can be made according to different formations, and the maximum output torque can reach 5000N. m. The maximum lifting force can reach 65KN, and the drilling process can be selected from hard alloy drill bit rotary drilling, DTH hammer impact rotary drilling, tooth drill bit drilling, etc., so that in most formations, this drilling rig can be used to directly drill holes and immediately perform rotary jetting to form piles.

　　•Suitable for a wide range of craftsmanship. In addition to meeting the requirements of rotary spraying technology, it can also be used for the construction of anchoring technology.

　　•There are many configuration components. Users can choose different performance modules according to the development needs of different projects, which can be purchased at once or configured according to the continuous development of the project. For single, double, and triple modules: swing spray and fixed spray modules; Anchor module.

　　•Easy to operate and maintain. Due to the use of full hydraulic technology, breakthroughs have been made in key technologies, such as the addition of stepless speed control modules during rotary jet lifting and anchoring drilling, making it more convenient to operate during operation.

　　•The drilling tools are fully equipped. According to market needs, we have developed large-scale rotary spray drilling tools to meet various user needs, such as single, double, triple, fixed spray, and swing spray drilling tools.

　　•Easy to combine. Users can choose different combinations based on their respective development situations to obtain devices with better performance to price ratios.

　　•For domestic users, we can configure a complete set of rotary spraying equipment according to their needs, and provide on-site practical operation training and demonstration of drilling.



　　Main technical parameters:


WorkmanshipParameter
Rotary jetAperture (mm)Single weight: 400-600 Double: 600-1200  Triple: 800-1600
Hole depth (m)0-80
Anchorage Aperture (mm)70-90
Hole depth (m)0-80
Rotary spraying and anchoringDrilling angle (°)0-90
Output torque (N.m)5200
Output speed (r/min)0-20(infinitely adjustable)、5、25、40、110、120
Power head lifting force (KN)65
Power head pressure (KN)35
Boosting speed (m/min)0-0.7(infinitely adjustable)、0.7、6
Pressure rate (m/min)0-1.4(infinitely adjustable)、11、12.4
Power head stroke (mm)3300，Effective length of drill pipe3000
Walking speed (m/min)8
Off road height (mm)300, hydraulic leveling
Motor power (KW)22+7.5+1.5

Construction status and appearance

（LengthXwidtXheightmm）		3500X2000X5200

Transportation status appearance

（LengthXwidthXheightmm）		3500X2000X1800
Weight (kg)about3800
Installation formIntegrated
